This multifunctional electric winch hoist is configured for 1T, 1.5T and 2.5T rated classes, with 12 m, 30 m, 60 m and 100 m wire-rope options. The actual lifting capacity varies by rope length and rigging method: single-line lifting provides full height, while double-line lifting doubles the load capacity at half the lifting height.
| Wire Rope Length | Rigging Method | Lifting Height | 1T Capacity | 1.5T Capacity | 2.5T Capacity | Load Ratio |
|---|---|---|---|---|---|---|
| 12 m | Single line | 12 m | 500 kg | 750 kg | 1250 kg | 100% load |
| 12 m | Double line | 6 m | 1000 kg | 1500 kg | 2500 kg | 100% load |
| 30 m | Single line | 30 m | 350 kg | 525 kg | 875 kg | 70% load |
| 30 m | Double line | 15 m | 700 kg | 1050 kg | 1750 kg | 70% load |
| 60 m | Single line | 60 m | 250 kg | 375 kg | 625 kg | 50% load |
| 60 m | Double line | 30 m | 500 kg | 750 kg | 1250 kg | 50% load |
| 100 m | Single line | 100 m | 150 kg | 225 kg | 375 kg | 30% load |
| 100 m | Double line | 50 m | 300 kg | 450 kg | 750 kg | 30% load |
Parameters translated from the supplied load chart. Longer wire-rope configurations reduce the recommended load ratio. Double-line rigging increases load capacity while reducing lifting height by half. Contact our sales team for configuration support.

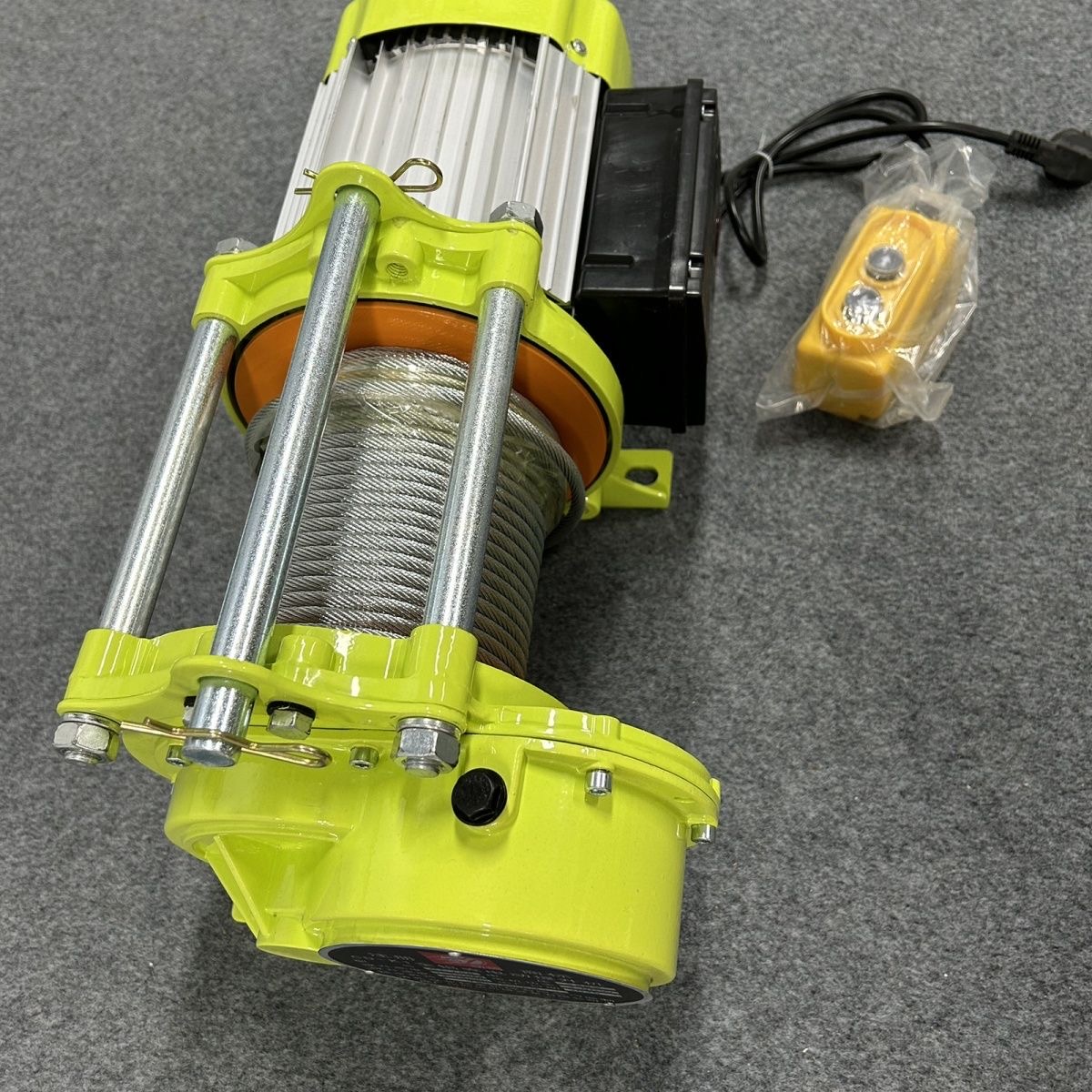

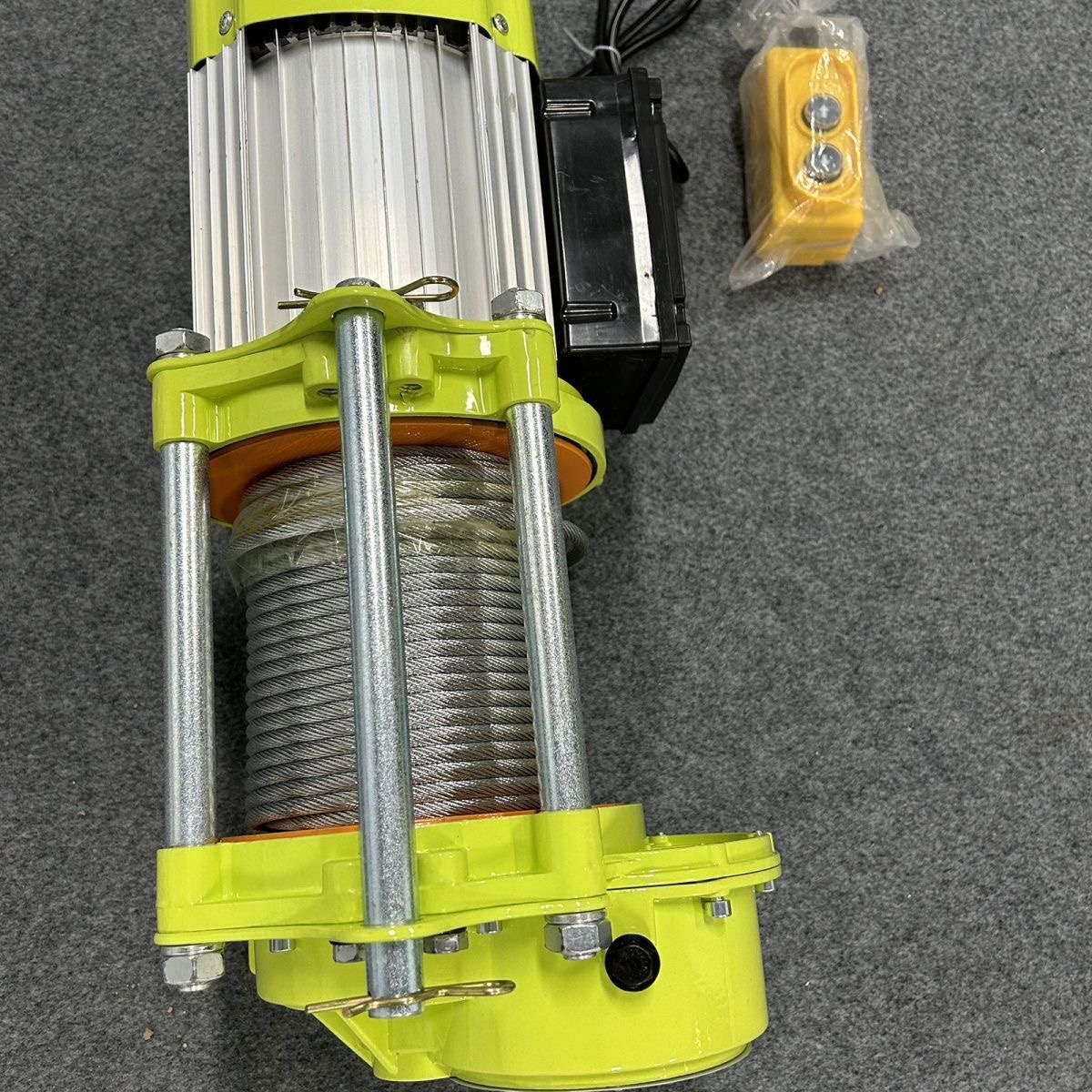

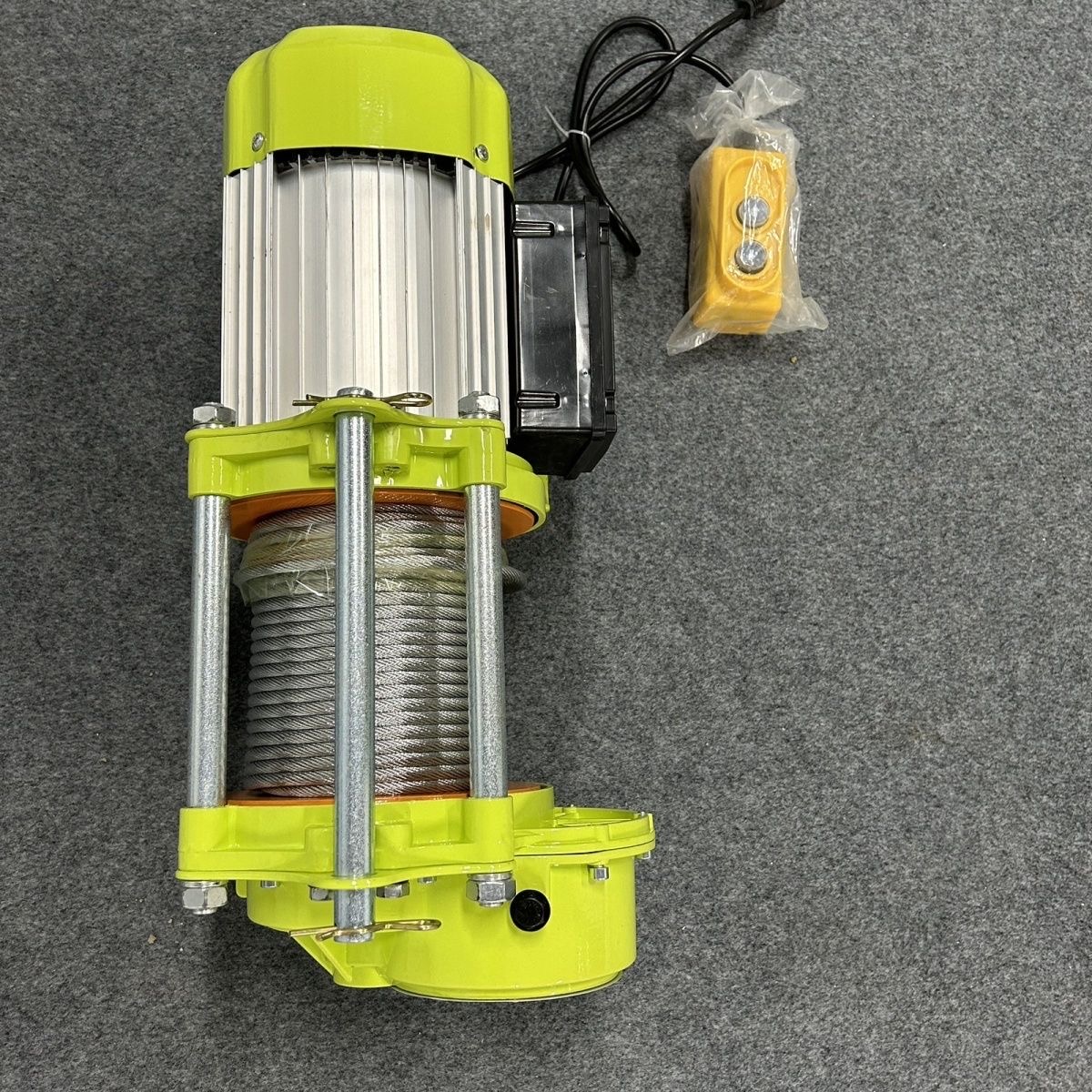

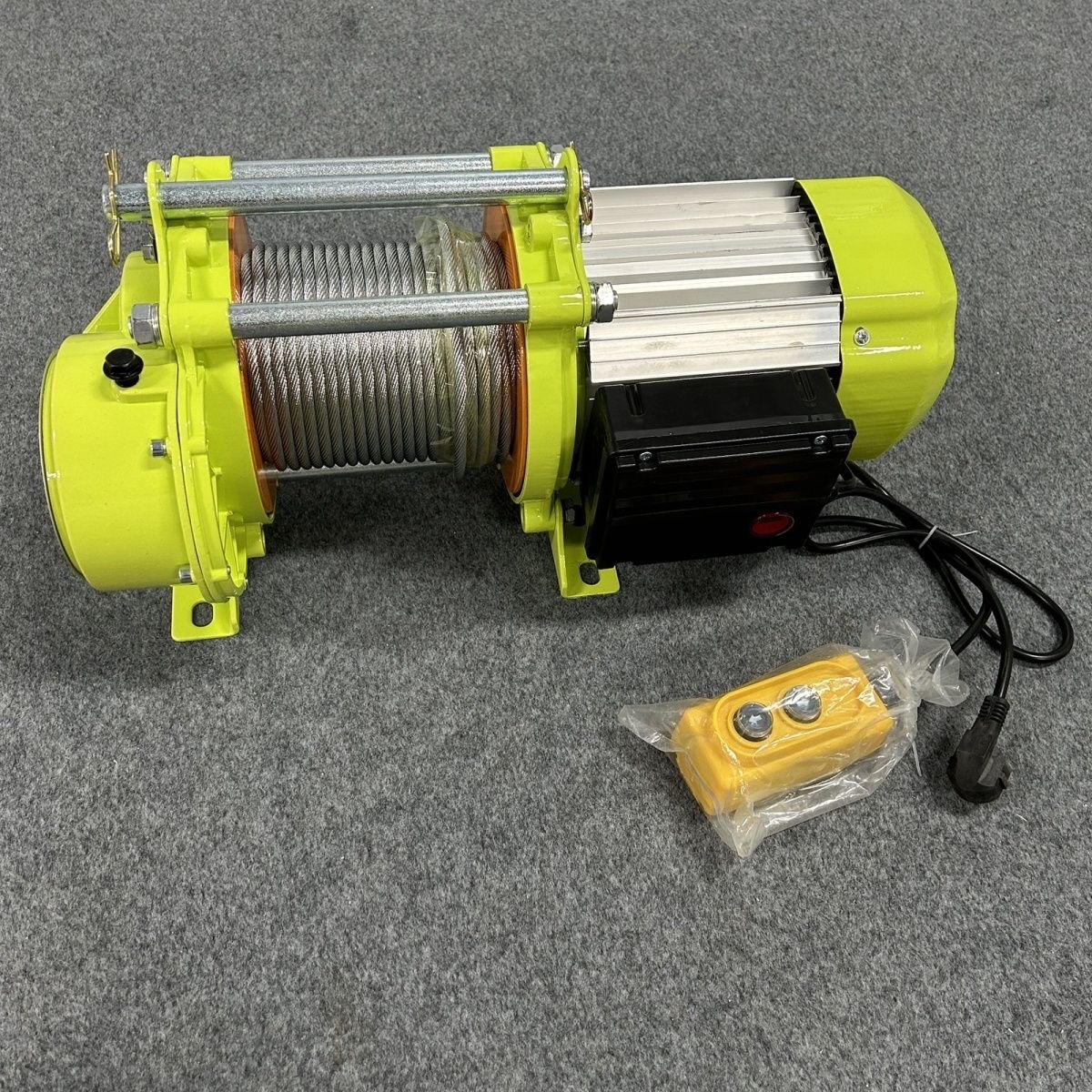

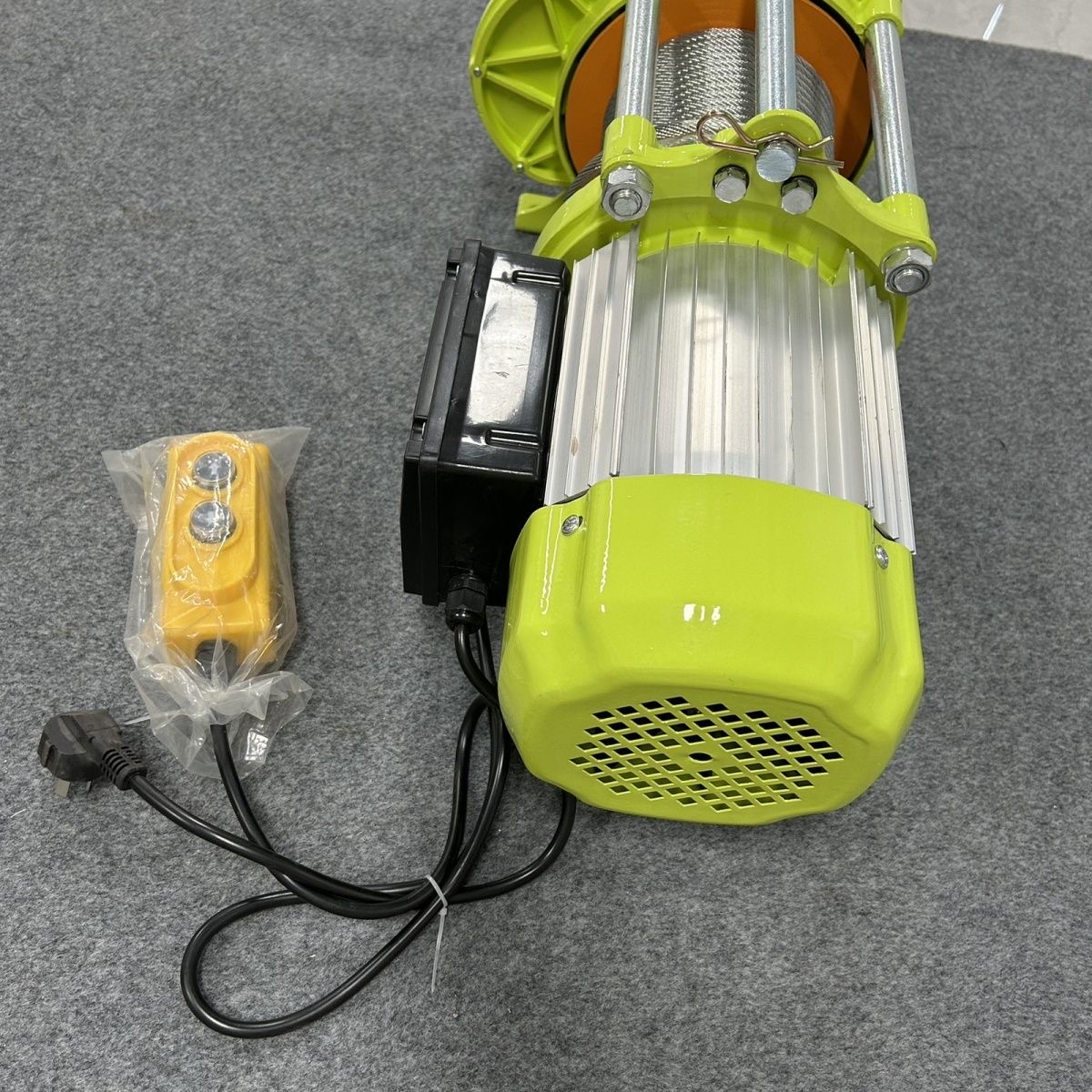

KCD Aluminum Electric Winch Hoist 220V is part of HENGYAN's lifting equipment range for global distributors, importers and industrial buyers. The model should be selected according to rated load, working environment, lifting or pulling distance, voltage, duty cycle and target market requirements.
Suitable for construction sites, workshops, farms, small factories and temporary lifting tasks that require a lightweight hoist body.
Recommended for buyers who need a compact electric winch hoist with easier handling and stronger corrosion resistance than basic steel-shell models.
Common 220V configurations are available, and project-specific voltage requirements can be discussed before quotation.
It is commonly used for light lifting and pulling tasks, but final selection should match load, duty cycle and installation conditions.
